Lab 9

Control

For control, I decided to use my orientation PID to rotate the robot to each angle in order to map the room. This was better than open-loop control since it offered more accuracy and consistency. It is also more simple to implement than angular speed control while offering most of its benefits. To perform my orientation PID scan, I created a new command MAP which resets the PID variables and starts a sequence of 25 rotations. Each rotation would be 15 degrees, which would produce a more detailed map than the 15 rotations suggested by the handout. I also created a GET_MAP_DATA command to retrieve the map and debug data from the robot.

case MAP: {
    perform_map = true;
    mapping_idx = 0;
    cur_points = 0;

    target_reach_time = millis();
    set_point_angle = 0;
    pid_rotate = true;
    error_sum = 0;
    last_pid_time = millis();
    last_error = gyr_yaw - set_point_angle;
    memset(mapping_data, 0, sizeof(mapping_data));

    break;
}

After setting each target angle and resetting the PID controller, the code waits 1 second before repeating this to increment the set point to the next target angle. This gives the robot enough time to reach the new angle and settle down so that we can get an accurate ToF measurement.

if (perform_map) {
    if (millis() - target_reach_time > 1000) {
        target_reach_time = millis();
        if (cur_points < DATA_POINTS) {
            mapping_data[cur_points] = last_tof;
        }
        mapping_idx++;
        set_point_angle = (mapping_idx * 15) % 360;
        if (set_point_angle > 180) set_point_angle -= 360;
        error_sum = 0;
        last_error = gyr_yaw - set_point_angle;
        last_pid_time = millis();
        if (mapping_idx == 25) { // 15 deg increments, 360/15 + 1 = 25
            perform_map = false;
            pid_rotate = false;
        }
    }
    if (cur_points < DATA_POINTS) {
        millis_data[cur_points] = millis();
        gyr_yaw_data[cur_points] = gyr_yaw;
        tof_front_data[cur_points] = last_tof;
        cur_points++;
    }
}

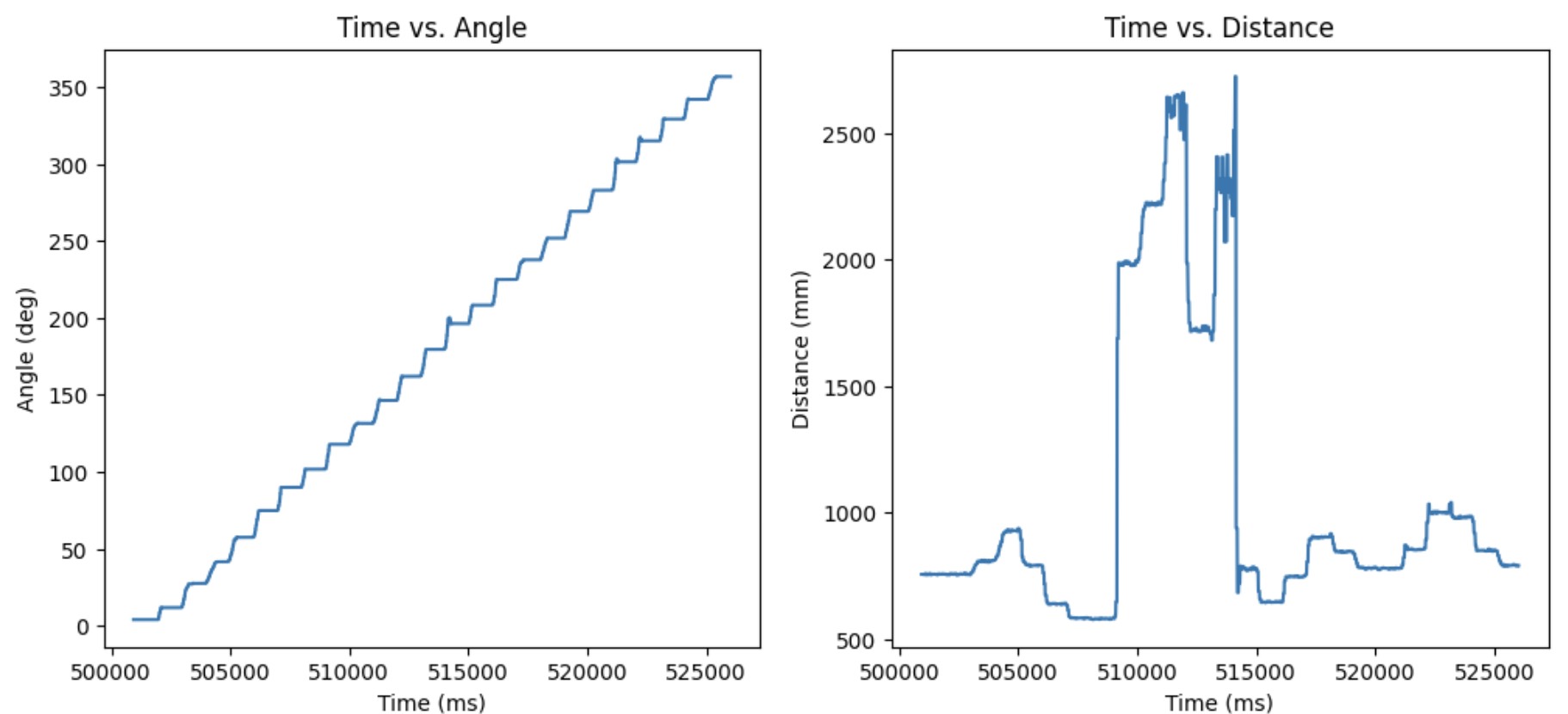

The graphs below show the yaw and distance sensor readings while the robot performs a mapping. The yaw graph shows little to no overshoot when performing each incremental rotation and plenty of settling time (seems to be 500-750ms) at each set point. The video below shows the robot as it performs a full mapping sequence. The tile floor at my place was slightly titled and uneven which contributed to the robot’s position translating while rotating, which was not an issue I observed when running it in the lab.

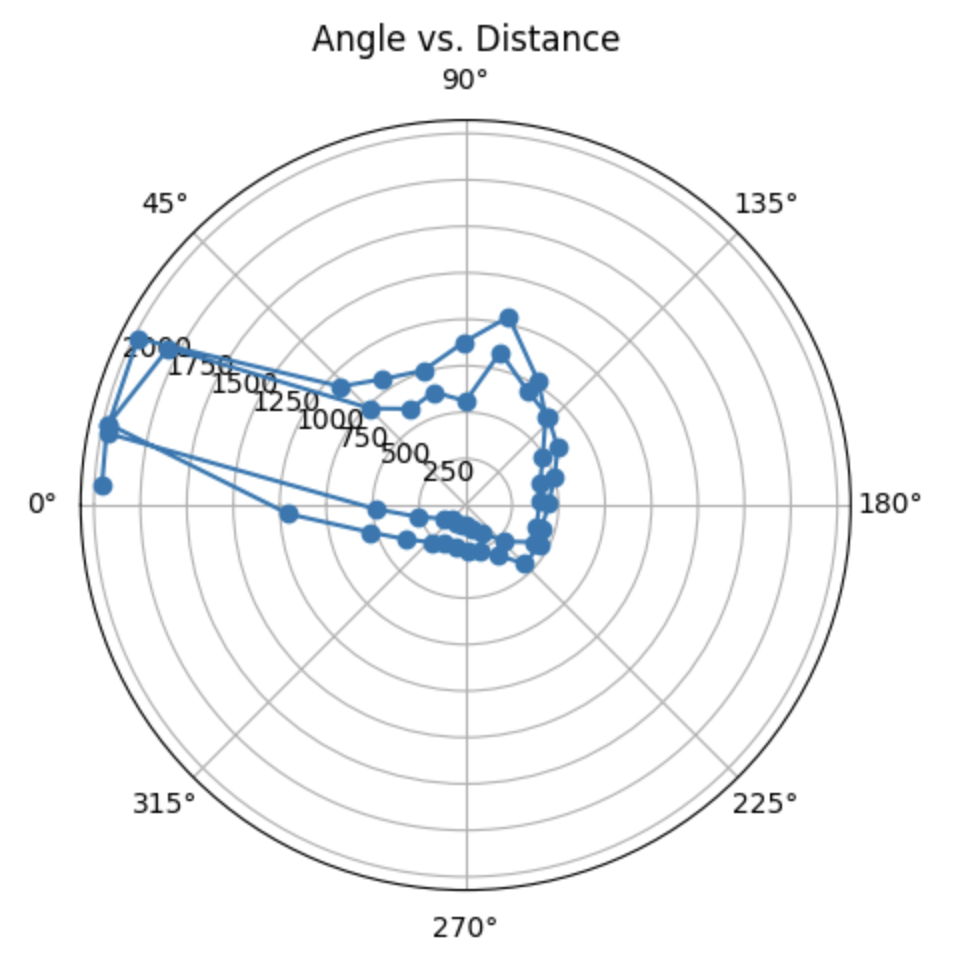

I also tried having the robot perform two rotations in-order to see if that would improve the scanning accuracy, which is shown below. While most points are in similar locations in both the first and second rotations, some points differ significantly due to the robot rotating slightly off-axis and translating slightly as it performed the 50 rotations needed to produce this graph. Therefore, I decided to just do one rotation when mapping out the room.

Mapping

The below graphs show the results of each of the 5 scans of the room in lab in 2 representations: a polar angle to distance graph and the transformed coordinates of each obstacle in world coordinates. To transform the points from the ToF sensor’s frame to the robot’s frame and then the world frame, I created 2 matrices $T^R_{TOF}$ and $T^W_R$, where

\begin{equation} T^R_{TOF} = \begin{bmatrix} 1 & 0 & 0.23 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} \text{ and } T^W_R = \begin{bmatrix} \cos\psi & -\sin\psi & X \\ \sin\psi & \cos\psi & Y \\ 0 & 0 & 1 \end{bmatrix} \nonumber \end{equation}

$X$ and $Y$ are the x and y coordinate of the robot for each scan and $\psi$ is the raw yaw while from the DMP reflected over the y-axis to align the robot’s coordinate frame with the room’s. This is shown in the code below.

def transform_points(dists, yaws, robot_X, robot_Y):
    world_x_points = []
    world_y_points = []
    for i in range(len(dists)):
        psi = -yaws[i] + np.pi # reflect over y-axis to algin with world
        T_robot_to_world = np.array([[np.cos(psi), -np.sin(psi), robot_X],
                                     [np.sin(psi), np.cos(psi), robot_Y],
                                     [0, 0, 1]])
        T_tof_to_robot = np.array([[1, 0, 70/304.8], # x offset mm -> ft
                                   [0, 1, 0], # y offset
                                   [0, 0, 1]])
        point_tof = np.array([[dists[i]/304.8],
                              [0],
                              [1]])
        point_world = T_robot_to_world @ T_tof_to_robot @ point_tof
        world_x_points.append(point_world[0, 0])
        world_y_points.append(point_world[1, 0])

    return world_x_points, world_y_points

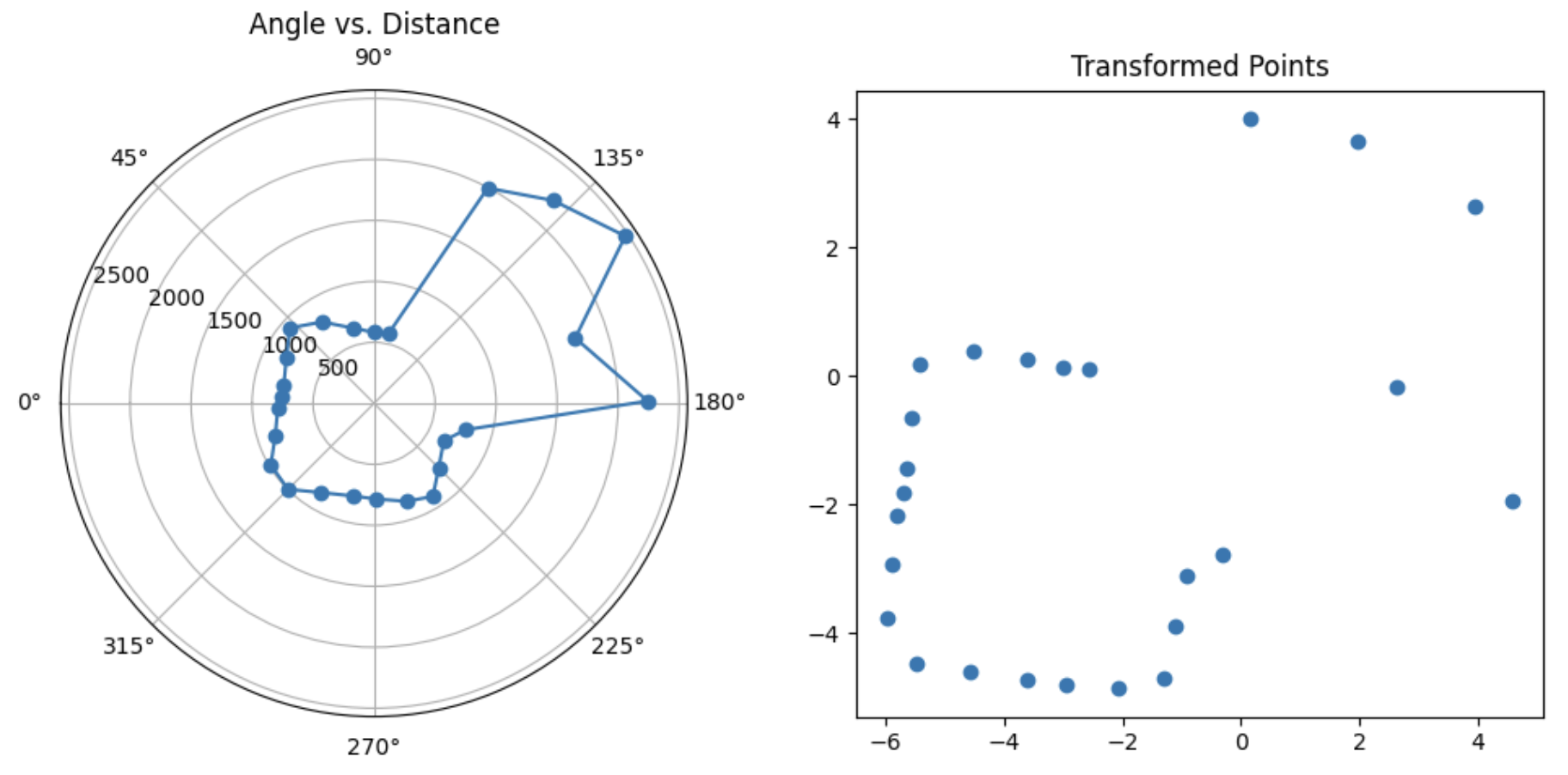

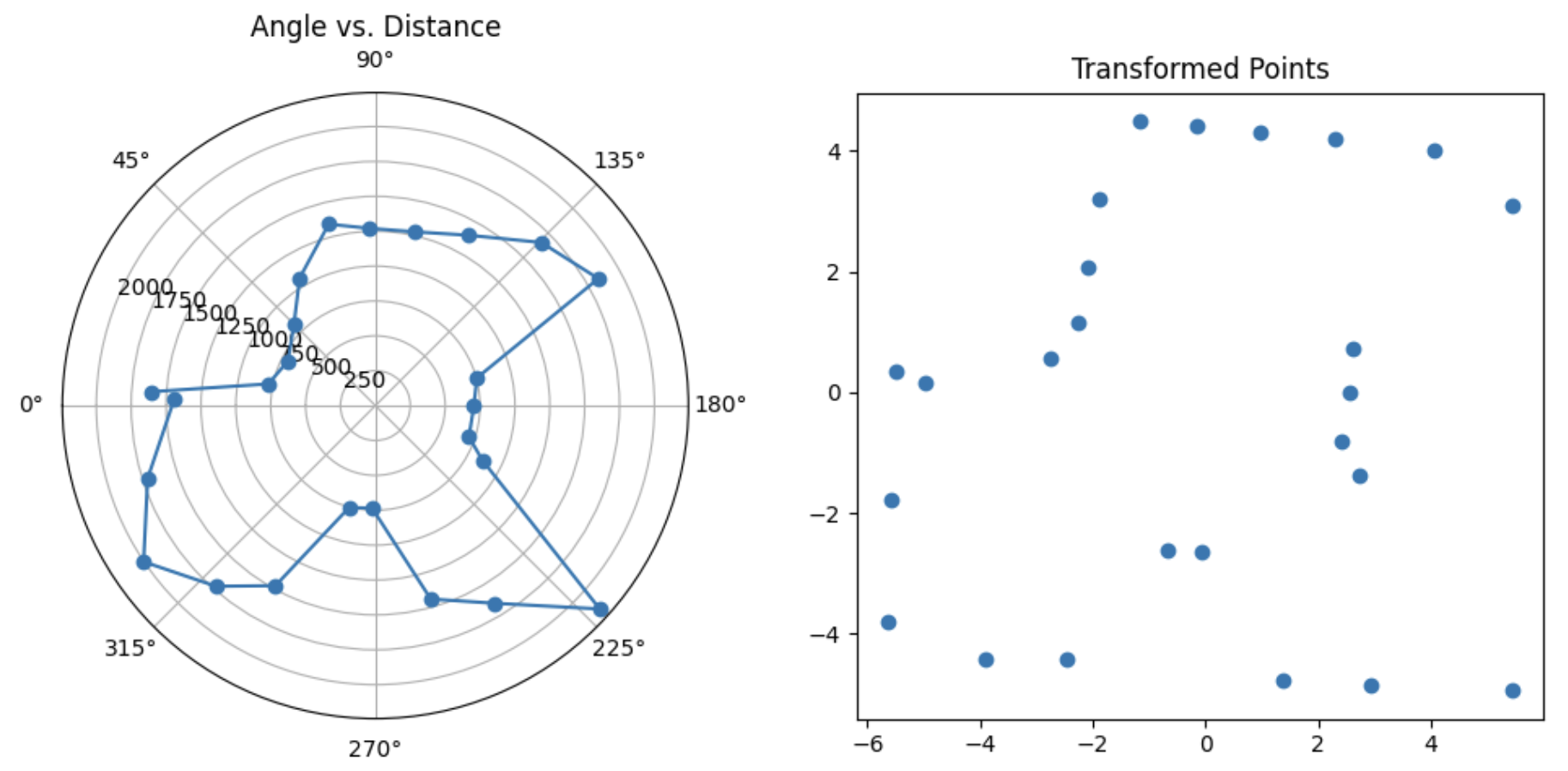

(-3, 2) Scan

(0, 0) Scan

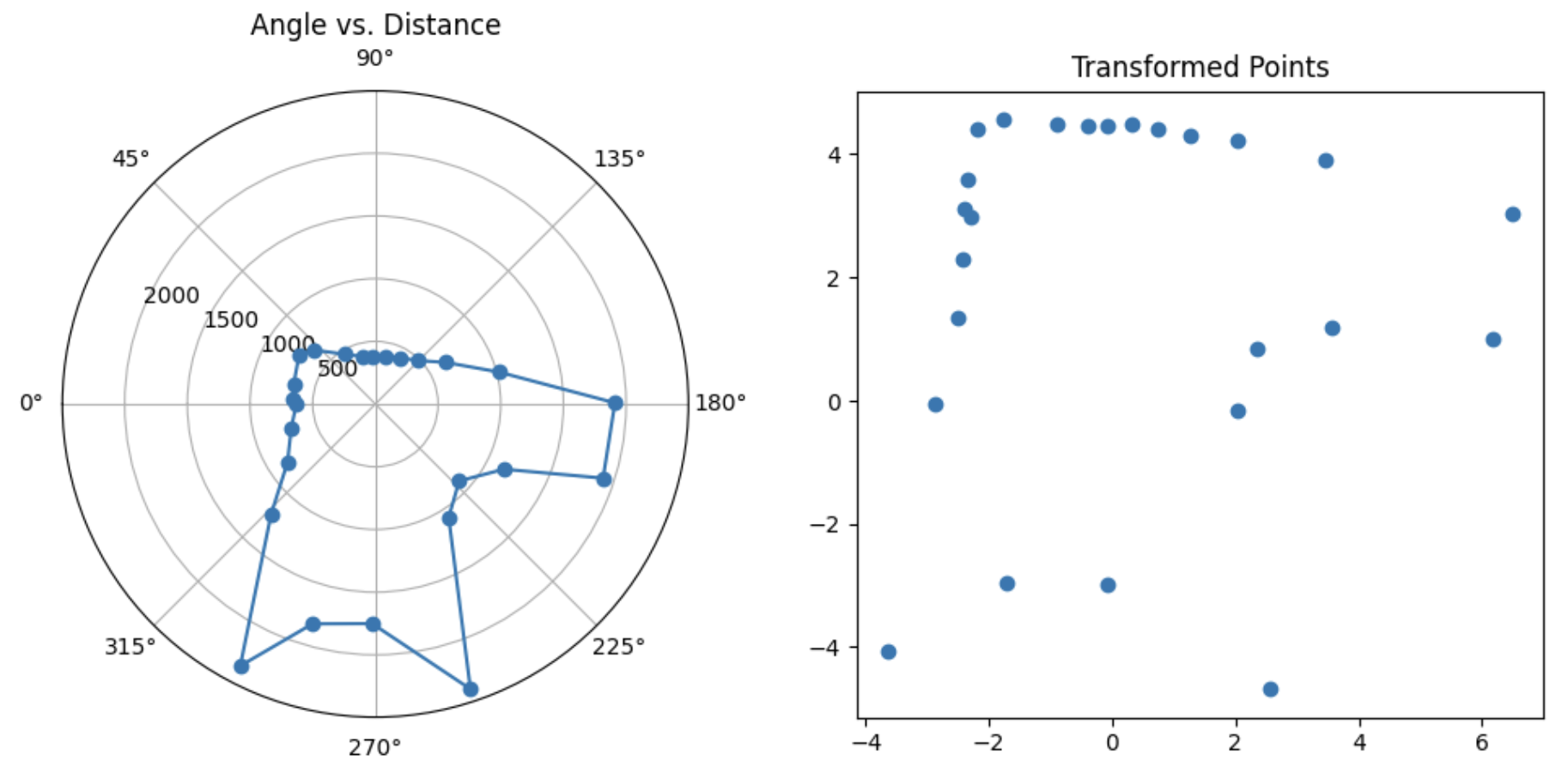

(0, 3) Scan

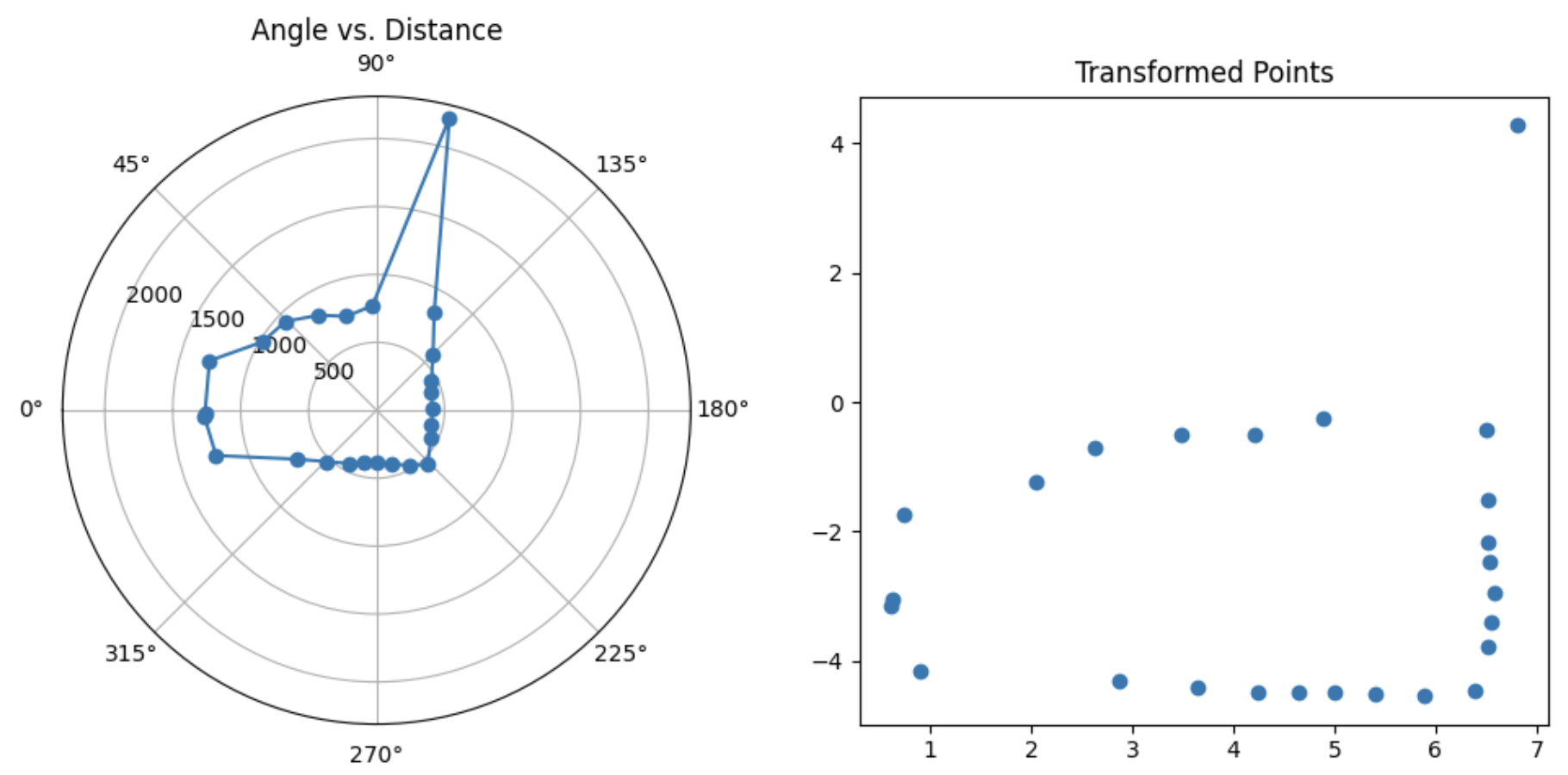

(5, -3) Scan

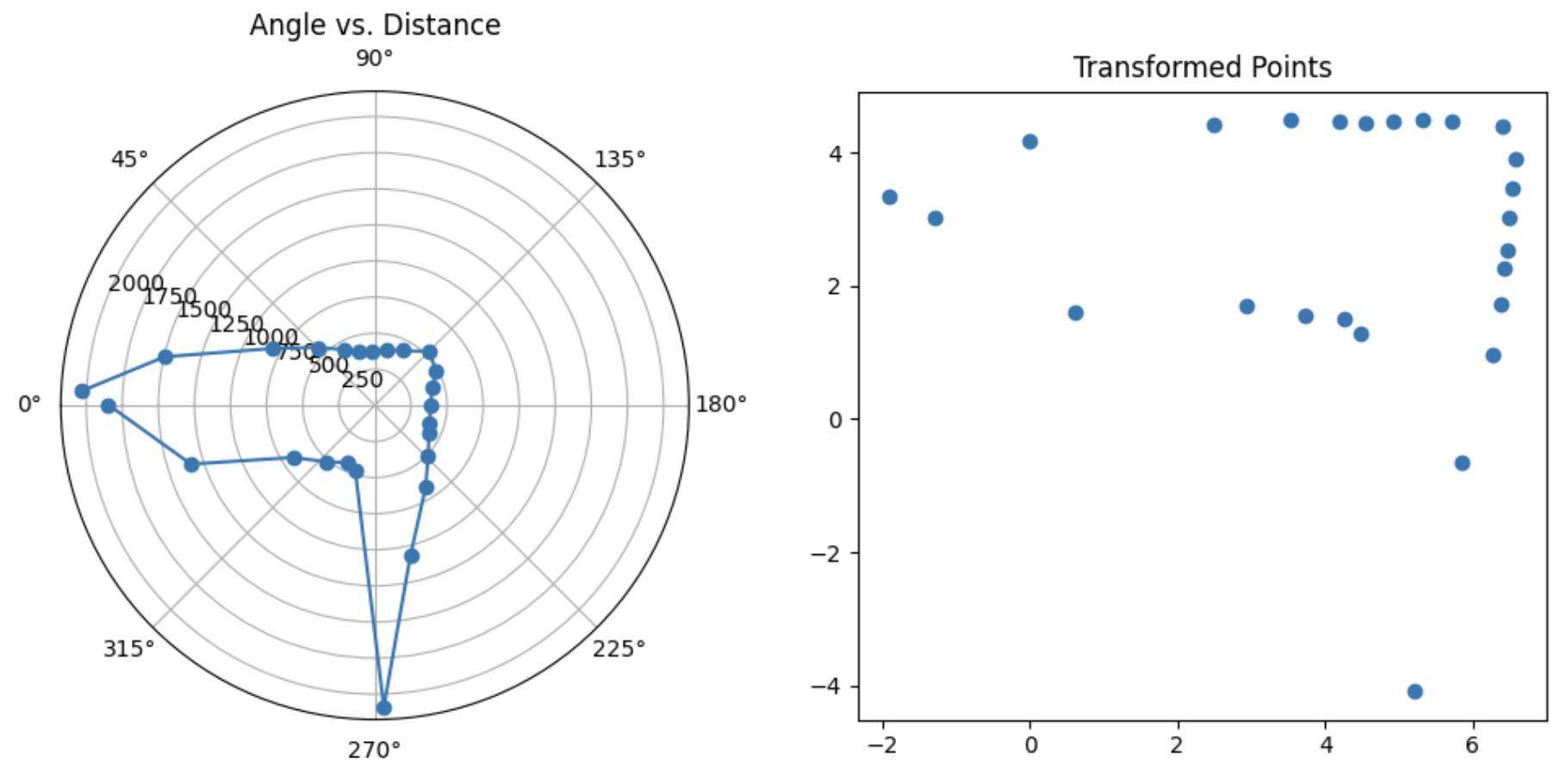

(5, 3) Scan

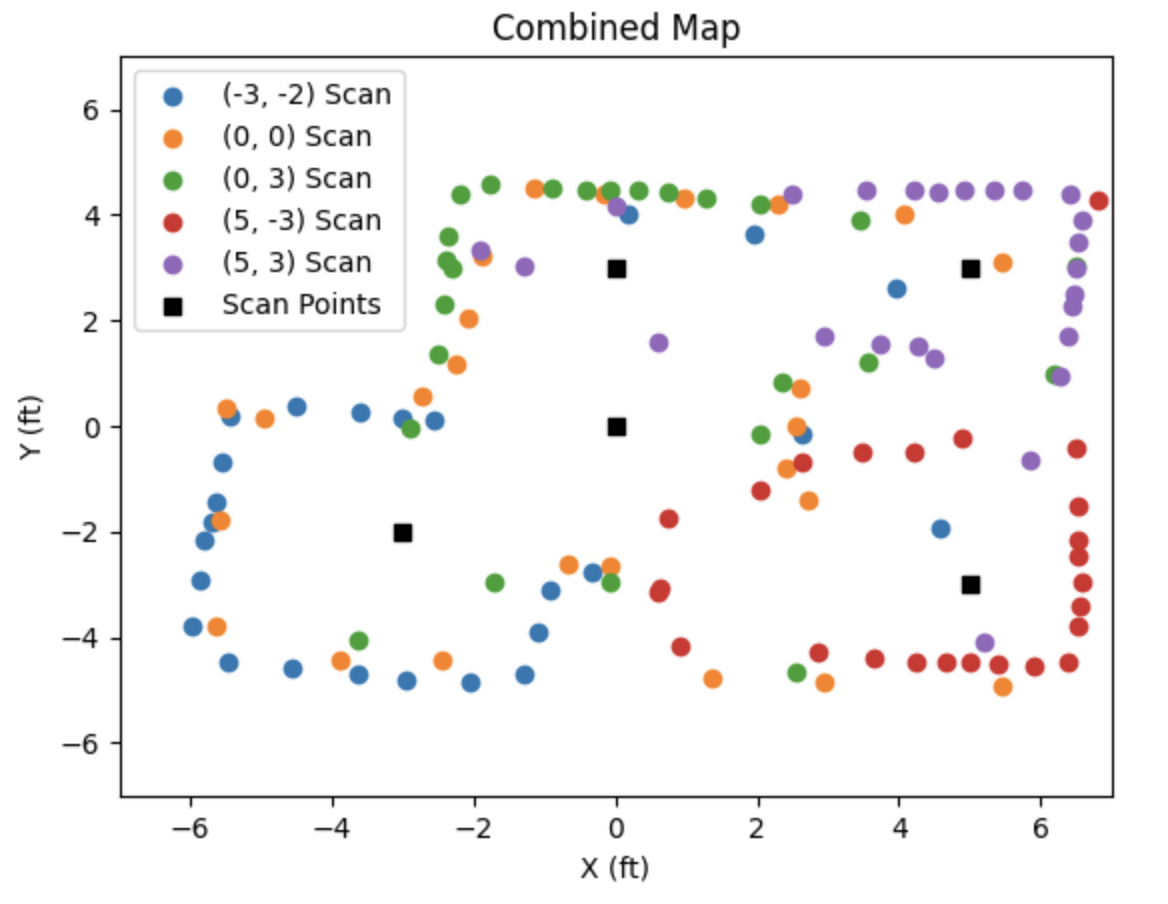

Combined Map

And below is the color-coded map of all of scans in world coordinates.

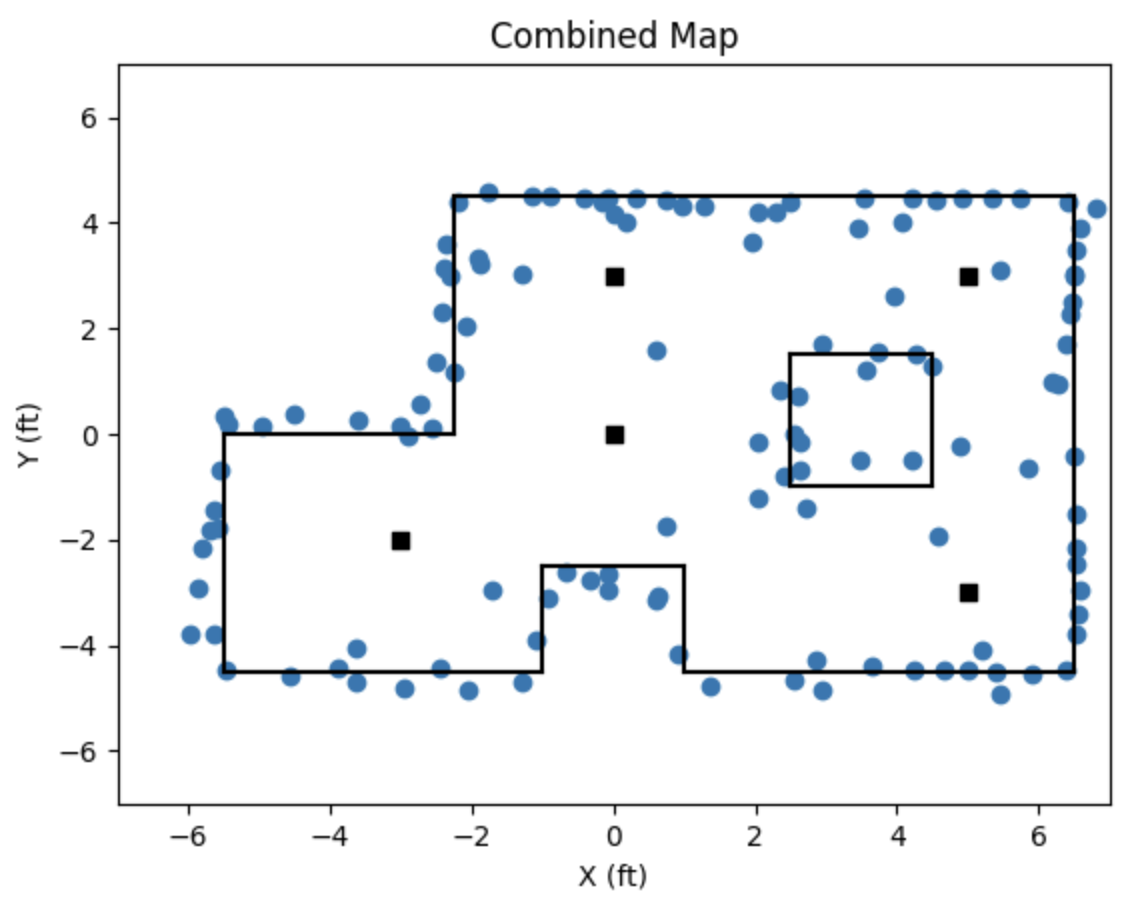

Line Map

To convert this map into a format which can be used in the simulator for later labs, I estimated all of the walls in the room and plotted their coordinates on the map. I noticed that the raw data was mostly accurate, although some of the outer walls appear crooked and not straight since the robot rotates slightly off-axis as it scans. The middle island obstacle is also missing its right wall since its not really visible from any of the scanning points.
